OceanFlex Tinned Marine Battery Cable Black 120 sq.mm (~4/0 AWG)

£14.95

Tax included Shipping calculated at checkout.

Multi-buy discounts on 2 or more bespoke cables*

Datasheets

Oceanflex Cable Datasheet

Delivery and Shipping

FREE & ECONOMY UK SHIPPING

We offer FREE Economy UK Delivery on all orders over £25 (2-4 business days).

Our standard delivery cost for UK orders under £25 is £5.00.

Large and heavy items will usually be sent via courier.
Smaller items will be sent by Royal Mail or Amazon Logistics.

INTERNATIONAL SHIPPING

For EU Shipping – you can choose between Standard
Delivery (usually 2-11 days, subject to local customs) or Express Delivery
(usually 2-7 days, subject to local customs).

Worldwide, non-EU shipping times are 2-11 days.
(Please allow extra time for items to clear customs).

The cost of shipping for international orders is calculated per order as it is based on the weight of the products.

[All website prices include UK VAT at 20% - For orders
outside the UK, the 20% VAT will be removed during the checkout when you enter the shipping destination.]

Made-to-Order

Marine Grade Tinned Copper Cable & Lugs

Klauke Crimping System

Crimped in accordance with BS7609

Description

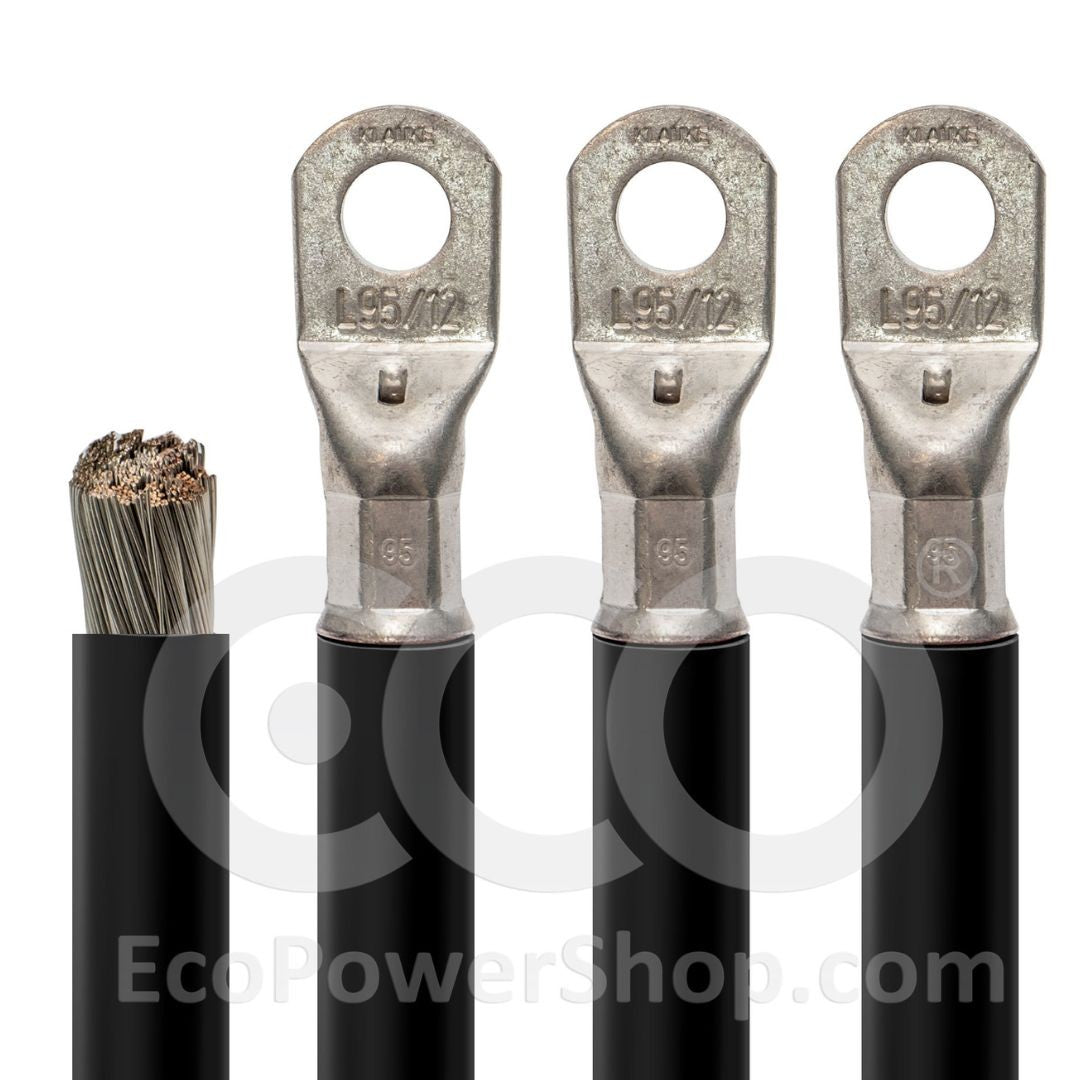

Custom-made 120mm² Black Marine-Grade Tinned Battery Cable

We supply 120.0 sq. mm (~4/0 AWG) OceanFlex tinned cable, cut to the length you require with your choice of cable end terminals from:

M8 (8.0mm hole diameter)
M10 (10.0mm hole diameter)
M12 (12.0mm hole diameter)
Bare ends (No connectors)

This is a high-quality made-to-order product using:

Klauke marine-grade tinned copper lugs
The Klauke calibrated crimping system
The cables are crimped in accordance with BS7609

If you want an option not displayed, please get in touch with your requirements.

Custom-made Red 120mm² battery cable is also available.

Specifications:

120mm² Cable Conductor Cross-Section
Conductor Specification (mm): 888/0.40
Nominal Current Rating 600 Amps
Maximum Overall Diameter: 19.6mm
Tinned Copper Conductors in accordance with BS EN 60228:2005
PVC Insulated - saves weight and offers good resistance to abrasion and cut through
Minimum Bend Radius: 6x OD
Suitable for use at temperatures from -30ºC to 70ºC
Suitable for 12v and 24v systems (maximum 60v)
Good resistance to petrol, diesel, lubricating oils and diluted acid
Very good resistance to moisture
Cables are printed with the specification on the insulation

Benefits of OceanFlex Cable:

Marine-specific flexible cable
Tinned thin wall low voltage wiring cable designed for use in harsh environments
In OceanFlex cable, the copper strands are tin-plated so the cable is highly resistant to corrosion from sea water over long periods of time.
Oceanflex cables have a much greater life span compared to standard cables.
This leads to lower repair/maintenance costs and less down time due to electrical faults and failures.

If you need a cable length or specification not shown on our website, please contact us with your requirements.
