AIR (Ryse)  |  SKU: EPS-1-ARSM-15

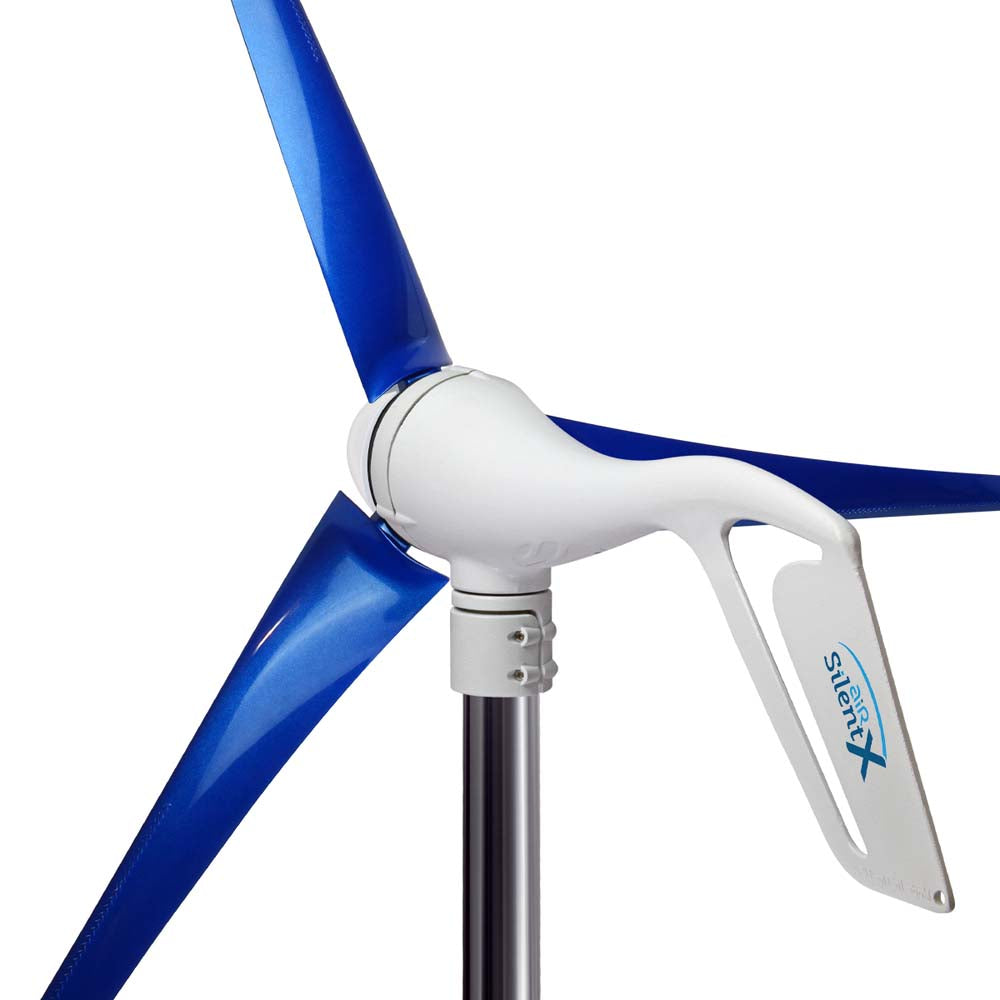

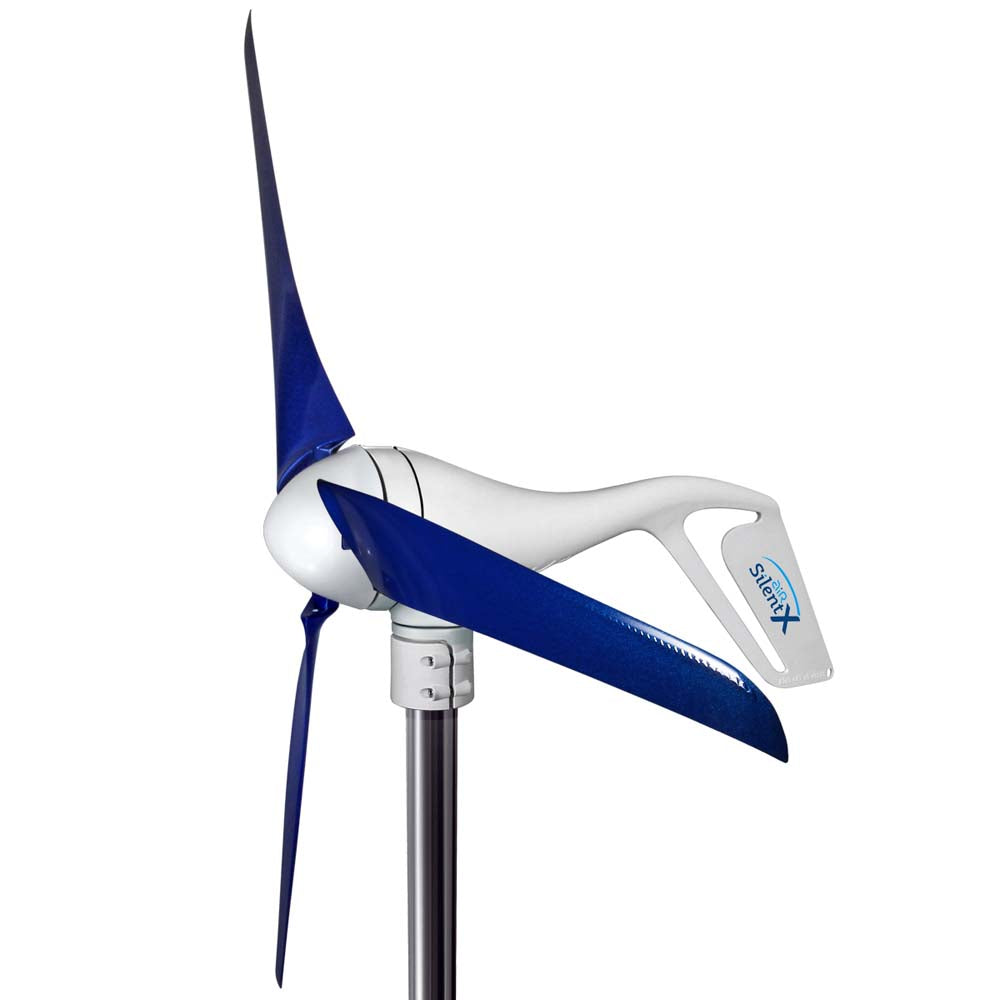

AIR SILENT X Marine Wind Turbine

£1,675.00
Tax included Shipping calculated at checkout.

User Manuals & Datasheets

Marine AIR Turbines Datasheet

AIR Wind Turbine Quick Start Guide

AIR Wind Turbines User Manual JAN24

Delivery and Shipping

FREE & ECONOMY UK SHIPPING

We offer FREE Economy UK Delivery on all orders over £25 (2-4 business days).

Our standard delivery cost for UK orders under £25 is £5.00.

Large and heavy items will usually be sent via courier.
Smaller items will be sent by Royal Mail or Amazon Logistics.

INTERNATIONAL SHIPPING

For EU Shipping – you can choose between Standard
Delivery (usually 2-11 days, subject to local customs) or Express Delivery
(usually 2-7 days, subject to local customs).

Worldwide, non-EU shipping times are 2-11 days.
(Please allow extra time for items to clear customs).

The cost of shipping for international orders is calculated per order as it is based on the weight of the products.

[All website prices include UK VAT at 20% - For orders outside the UK, the 20% VAT will be removed during the checkout when you enter the shipping destination.]

Quiet Operation

Carbon fibre blades

Built-in Controller

Easily integrates with Solar PV

Description

The AIR SILENT X from Ryse Energy combines:

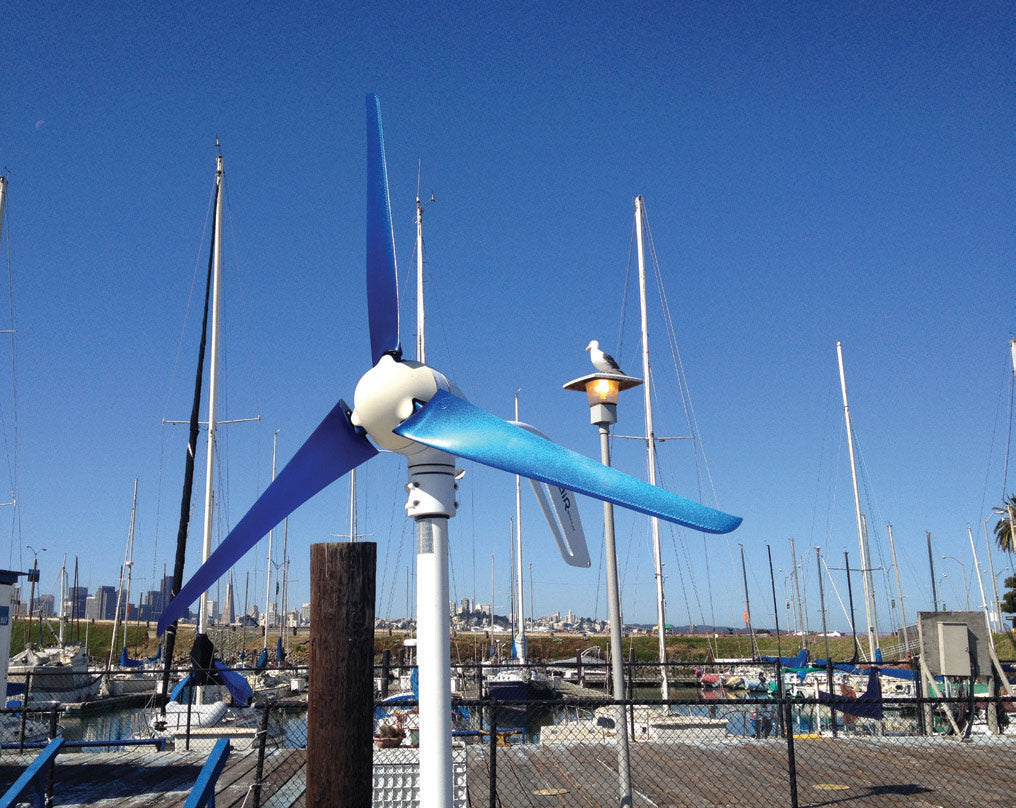

This winning combination makes the AIR SILENT X a top choice for yachtsmen and women who need a reliable and efficient form of renewable power.

AIR SILENT X Features:

  • Quiet Operation
  • New AIR MAX blue/white/grey blades, which are carbon fiber and hand laminated
  • Built-in Charge Controller - easy to install
  • Weighs under 6kg
  • Easily integrates with Solar PV
  • Industry leading 3 Year Warranty

Mounting Pole:

  • The AIR range of wind turbines require a mounting pole of 48.0mm external diameter, this is a standard scaffold pole size tube.
  • For use on boats, the AIR turbines can be used with the Rutland 1200 Mounting Kit by adding a 4.0mm thick rubber sleeve insert.

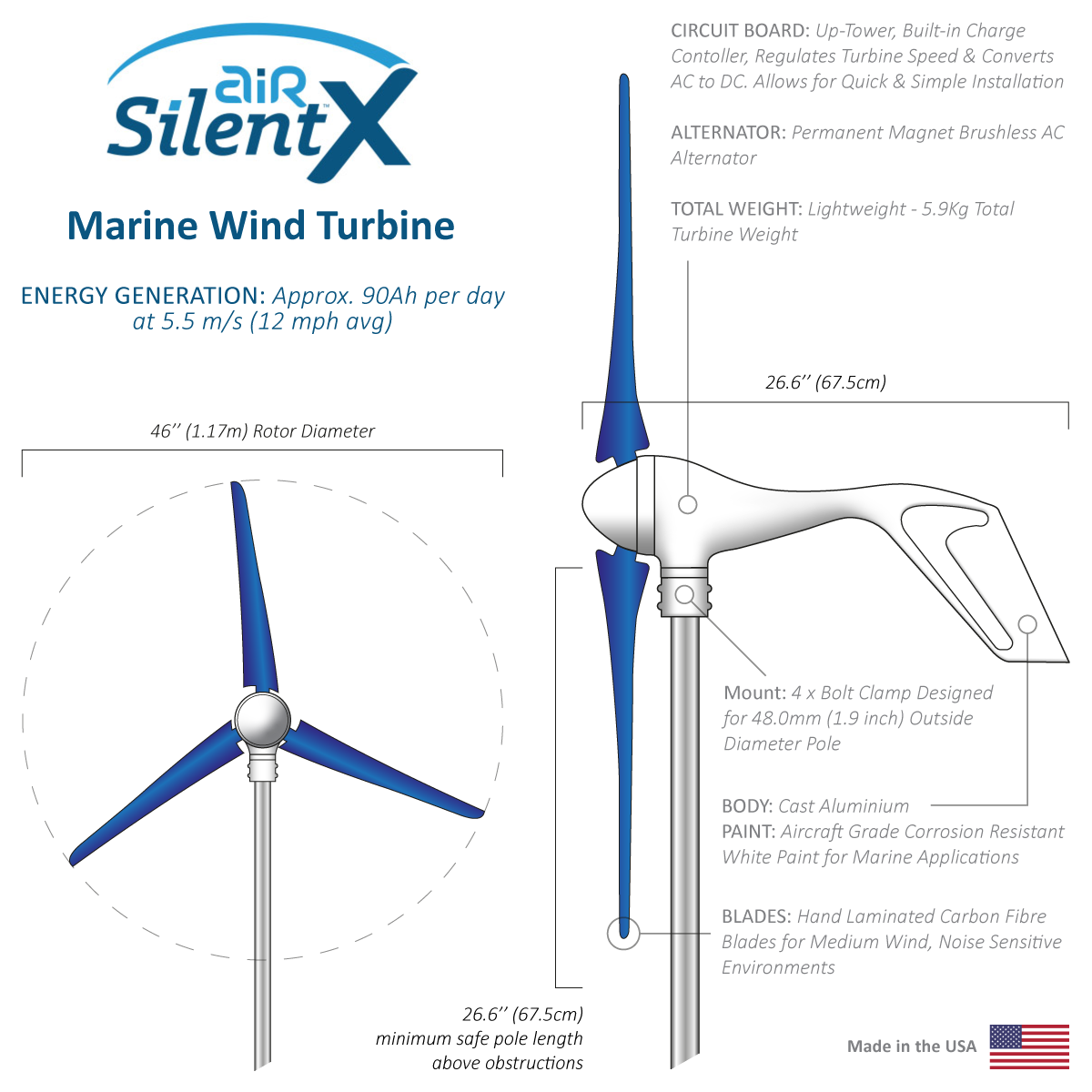

Specifications
  • Power Output
    Approx. 90 amp - hr. per day at 5.5 m/s (12 mph avg)
  • Peak Output
    450W
  • Turbine Type
    Horizontal Marine Wind Turbine
  • Cut-in Wind Speed
    3.13 m/s (7 mph)
  • Rotor Diameter
    1.17m
  • Swept Area
    1.075 m.sq
  • Mounting Pole
    Requires 48mm outside diameter
  • Weight
    5.9 Kg
  • EPS Power Rating
    Medium-High
  • EPS Noise Rating
    Low
  • Rotor Type
    3 Blade Horizontal
  • Blade Material
    Hand laminated, Carbon fibre (with low sound emissions) - Blue/White/Grey
  • Body Construction
    Cast aluminum with corrosion-resistant paint

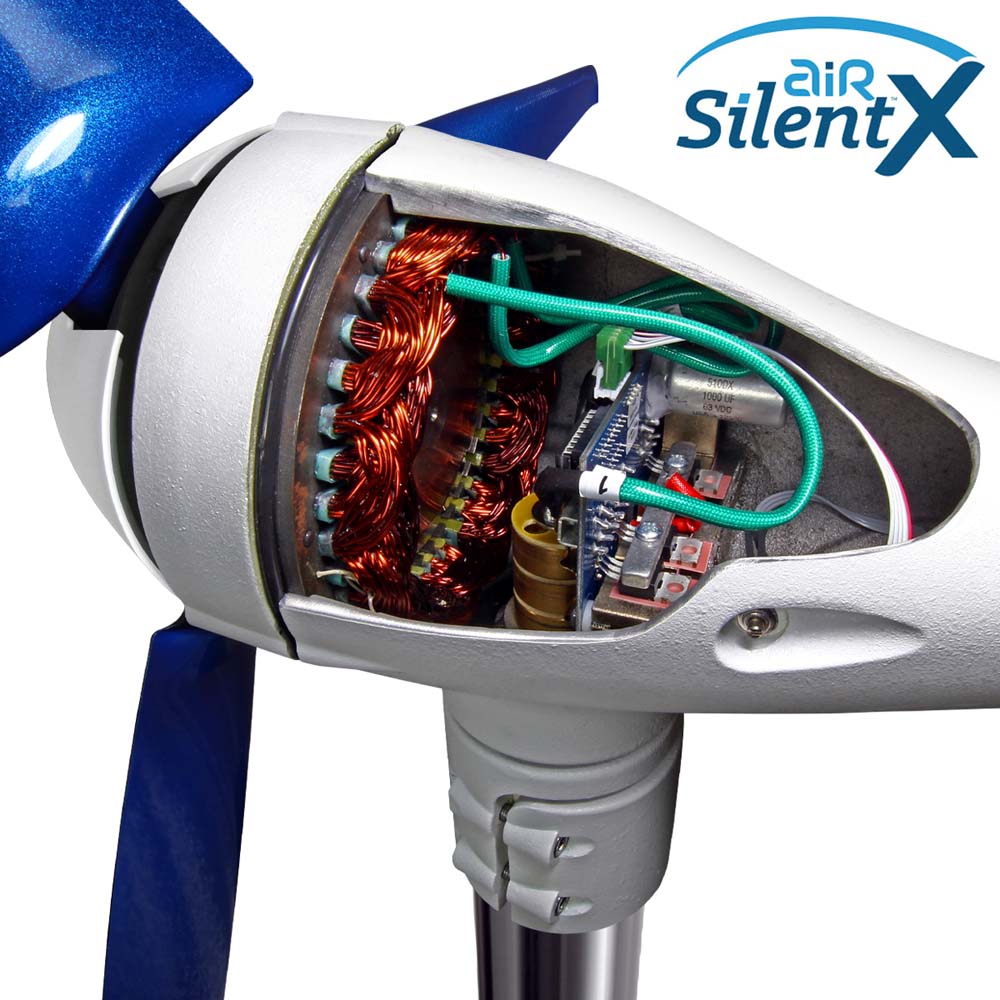

  • Generator Type
    Permanent magnet brushless
  • Control Mode
    Microprocessor-based smart controller
  • Overspeed Protection
    Electronic torque control
  • Survival Wind Speed
    110 mph
  • Solar Input?
    Can be used with a solar PV system
  • Warranty
    3 Years
