TE SOLARLOK  |  SKU: 2270025-1

TE SOLARLOK PV4-S Solar Connector Female

Regular price £5.99
Tax included Shipping calculated at checkout.


Datasheets

Delivery and Shipping

FREE & ECONOMY UK SHIPPING

We offer FREE Economy UK Delivery on all orders over £25 (2-4 business days).

Our standard delivery cost for UK orders under £25 is £5.00.

Large and heavy items will usually be sent via courier.
Smaller items will be sent by Royal Mail or Amazon Logistics.

INTERNATIONAL SHIPPING

For EU Shipping – you can choose between Standard
Delivery (usually 2-11 days, subject to local customs) or Express Delivery
(usually 2-7 days, subject to local customs).

Worldwide, non-EU shipping times are 2-11 days.
(Please allow extra time for items to clear customs).

The cost of shipping for international orders is calculated per order as it is based on the weight of the products.

[All website prices include UK VAT at 20% - For orders
outside the UK, the 20% VAT will be removed during the checkout when you enter the shipping destination.]

Description

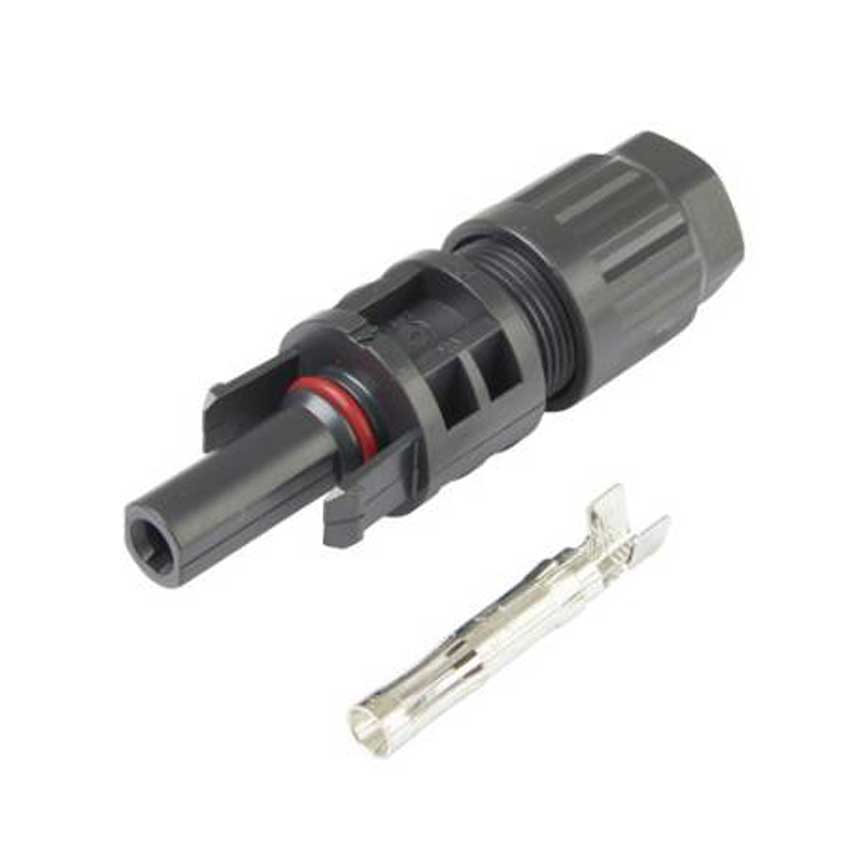

TE Connectivity SOLARLOK PV4-S solar panel cable connector - FEMALE

The SOLARLOK PV4-S connector is an upgrade of the industry leading SOLARLOK PV4 connector to meet a minimum 1500V rating with IP68 protection. The SOLARLOK PV4-S connector has been tested to assure reliable and safe connections of solar arrays. The connectors use industry standard crimp tooling.

Supplied with pin contact.

Part no. 2270025-1

SPECIFICATIONS

Rated Voltage: 1000V DC / 1500V DC (UL & TUV IEC)

Rated Current: UL 20A, TUV 40A - 4.0mm.sq /12 AWG (85 deg C)

Rated Current: UL 30A, TUV 45A - 6.0mm.sq /10 AWG (85 deg C)

Contact Resistance: 0.35 milliohms.

Material: Housing - PPE, PS / Contact - Tinned Copper

Cable Sizes: 4.0 - 6.0mm.sq / AWG 12-10

Dimensions: 63.0mm x 24.5mm

IP Rating: IP68 (1m / 24hrs)
